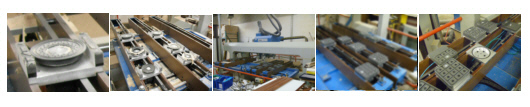

Suction
Pads for Alberti
CNC Machines
Each and every
Padsmore suction pad is designed to ensure a perfect fit on the
original machine. Padsmore Pads has been proven to not only meet but,
in most cases, exceed standards of the existing pad on normal
wood-machining applications.
If you want to
replace the rubber pads, our engineering team can check and design a
specific, personalized suction system for your special project. We
invite you to contact us for an initial cost-free assessment.
|
Part No#: J.088.120.17.PR |
 |
|
Round rubber suction pad |
|
bottom id (mm) |
od (mm) |
thickness (mm) |
|
88 |
120 |
17 |
|
Part No#: J.084.108.17.PR |
 |
|
Round rubber suction pad |
|
bottom id (mm) |
od (mm) |
thickness (mm) |
|
84 |
108 |
17 |
|
Part No#: J.056.082.17.PR |
 |
|
Round rubber suction pad |
|
bottom id (mm) |
od (mm) |
thickness (mm) |
|
59 |
82 |
17 |
|
Part No#: J.060.068.17.PR |
 |
|
Round rubber suction pad |
|
bottom id (mm) |
od (mm) |
thickness (mm) |
|
60 |
68 |
17 |
|
Part No#: J7.160.130.85.SK |
 |
|
Suction block assembly by Padsmore - rotating 360 degree |
|
length (mm) |
width (mm) |
height (mm) |
|
160 |
130 |
13/85 |
|
Part No#: J1.132.146.029.12 |
 |
|
Fullsize suction pad w/12 cells and minipads |
|
length (mm) |
wideth (mm) |
thickness (mm) |
|
132 |
146 |
28.90 |
|
Part No#: J1.132.075.029.06 |
 |
|
Halfsize suction pad w/6 cells and minipads |
|
length (mm) |
wideth (mm) |
thickness (mm) |
|
132 |
146/75 |
28.90 |
|
Part No#: J1.132.040.029.00 |
 |
|
Smallsize suction pad with minipads |
|
length (mm) |
wideth (mm) |
thickness (mm) |
|
146 |
40 |
28.90 |
|
